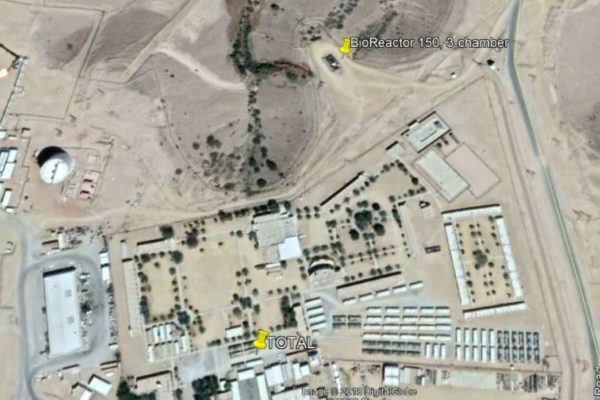

Project: BioReactor at Oil Field
Type: BioReactor 150, 3-chamber
Client: TOTAL Oil Company
Capacity: 150 m³/day
Year of Installation: 2009.

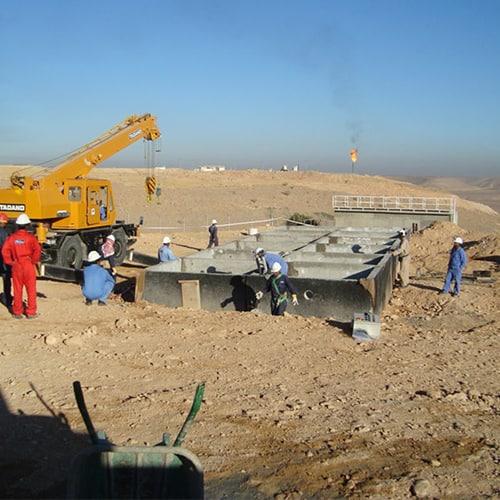

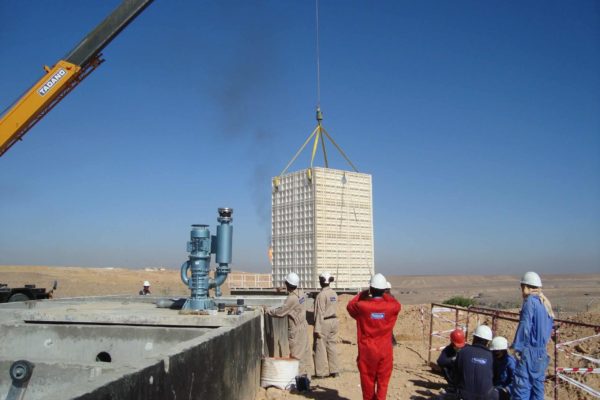

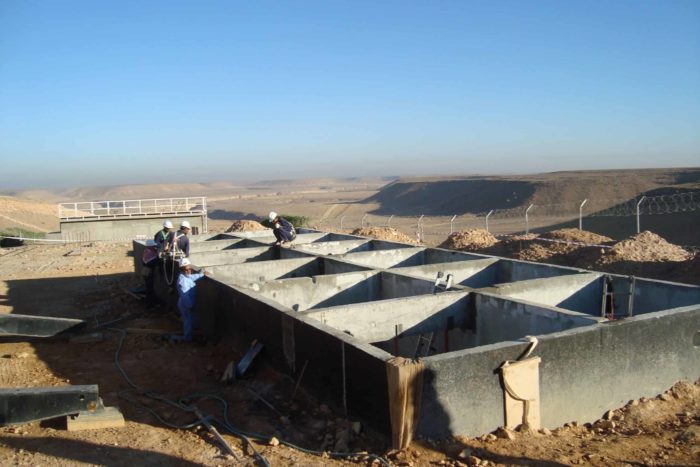

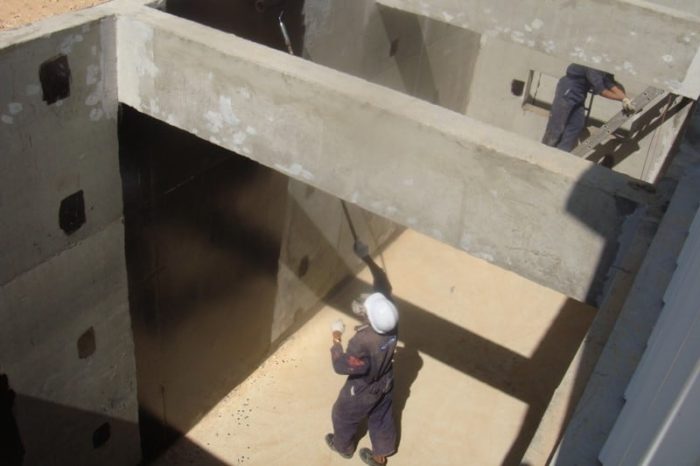

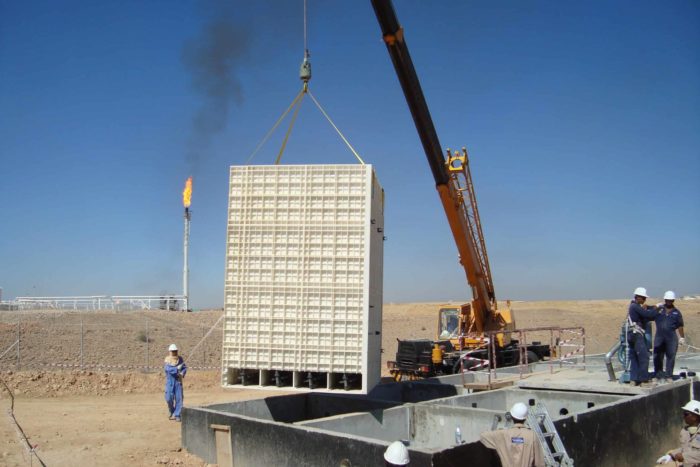

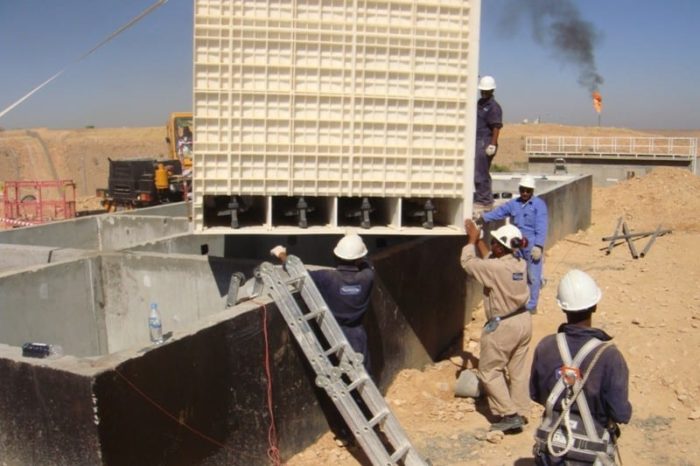

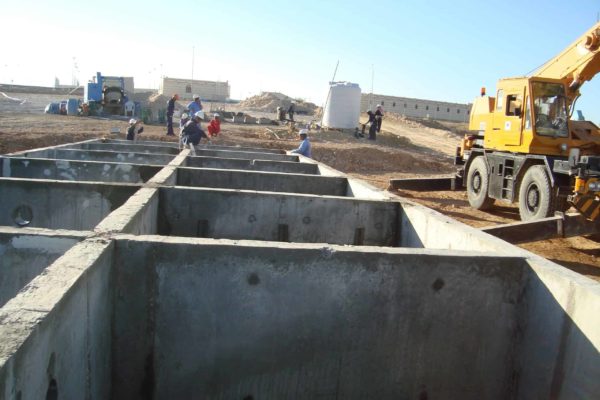

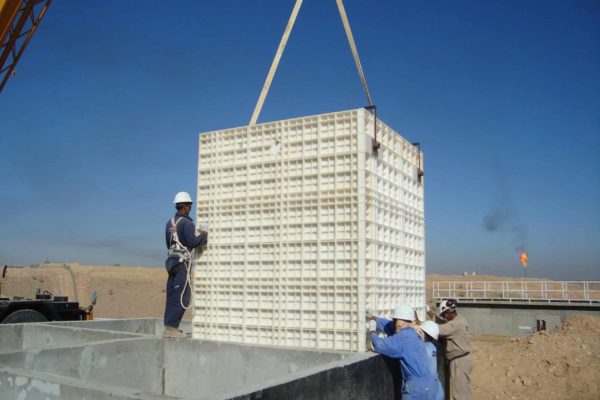

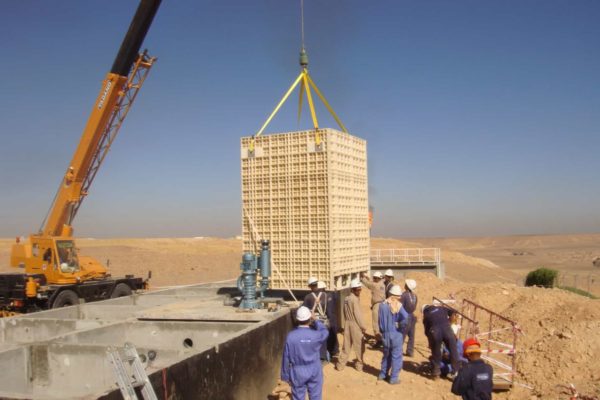

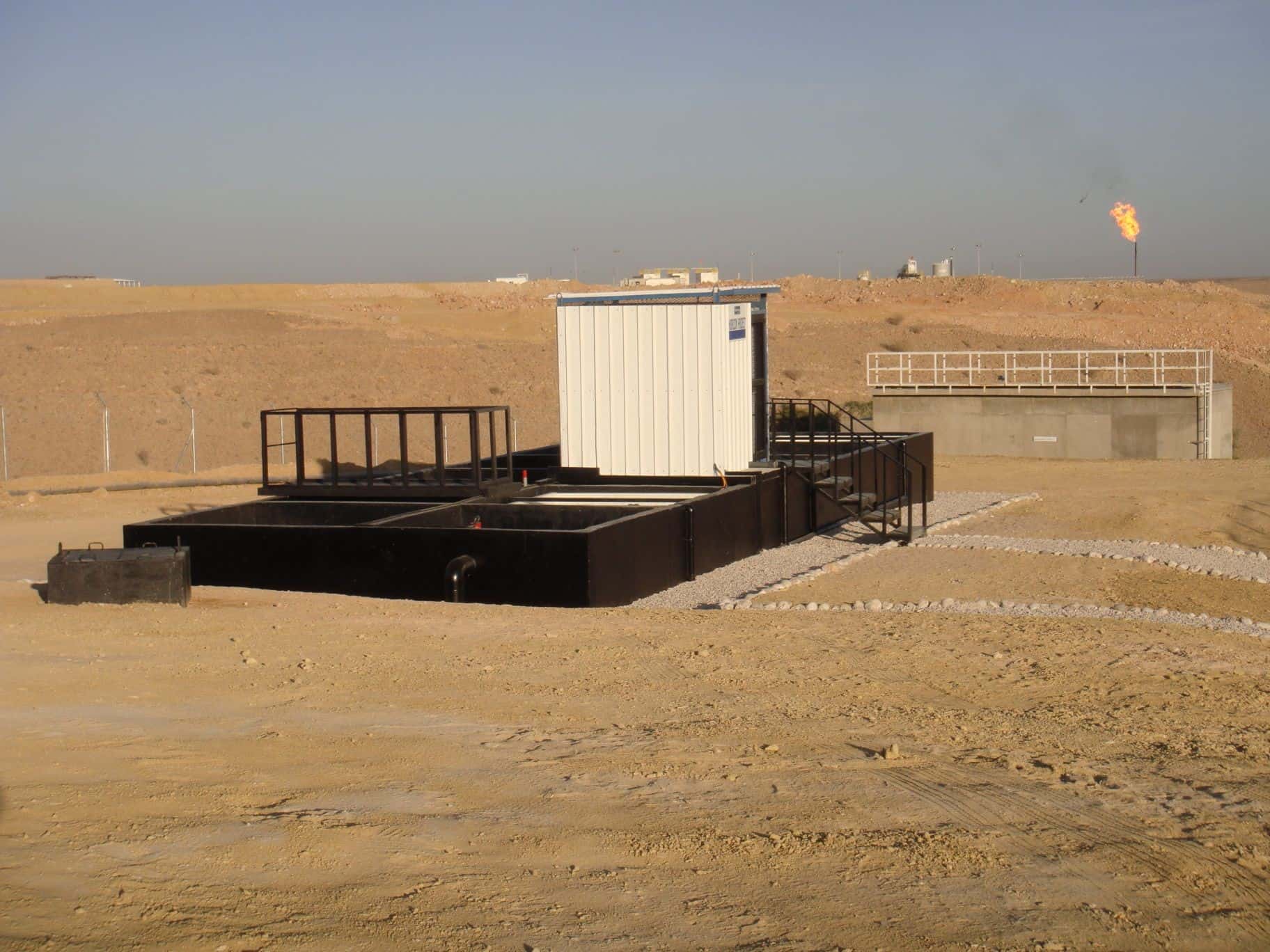

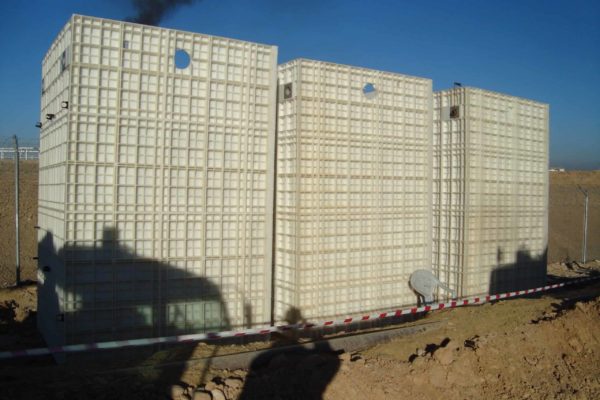

The 3-chamber BioReactor units are installed in the pre-built concrete tanks.

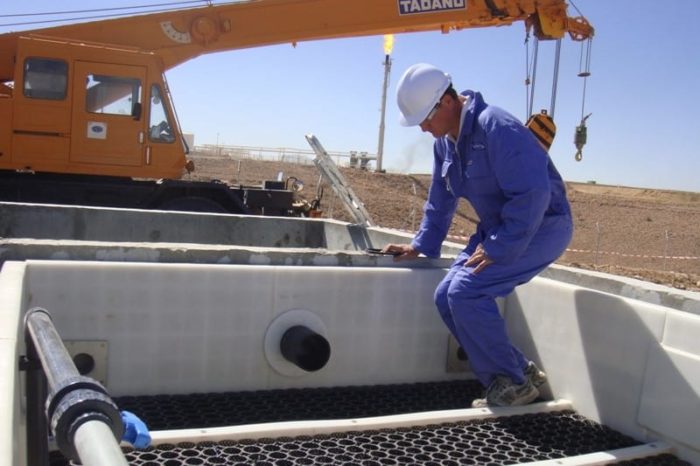

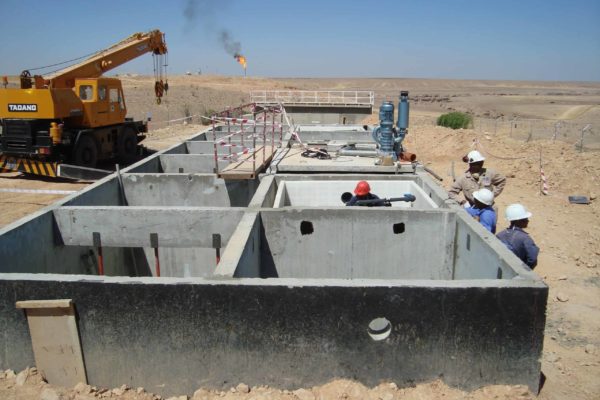

You can see the cleaning unit are installed in one chamber and then there is a subsequent settling zone in the concrete tank.
You can also see the septic tank built in the same concrete tanks.

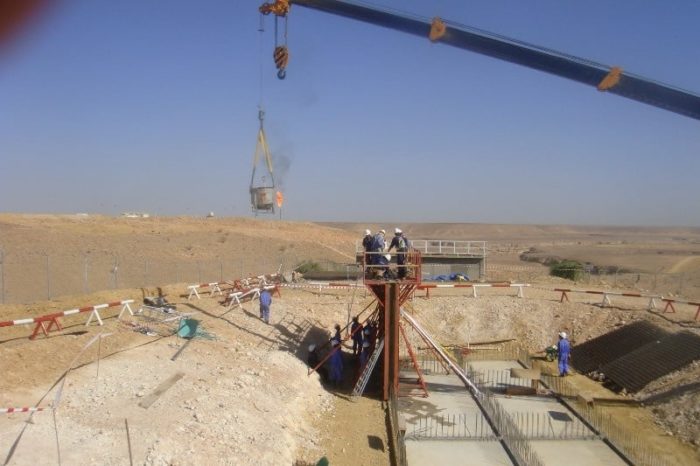

See here simplified illustration of involved groundwork and installation.

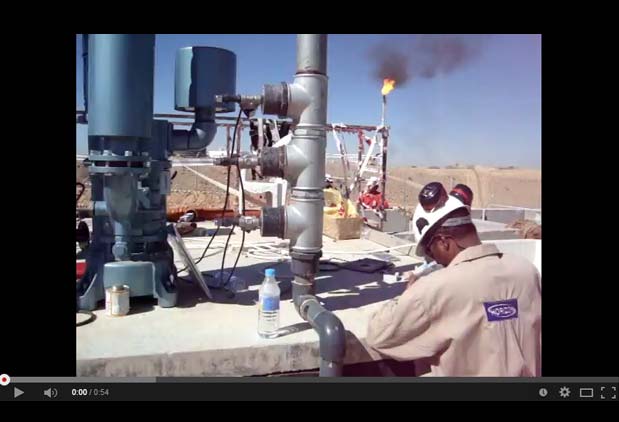

See here video of “walk around” the system under installation.
