The Core of BioKube’s Technology

BioKube technology

How does a BioKube wastewater treatment plant work? This is a demonstration video of BioKube´s treatment process of wastewater.

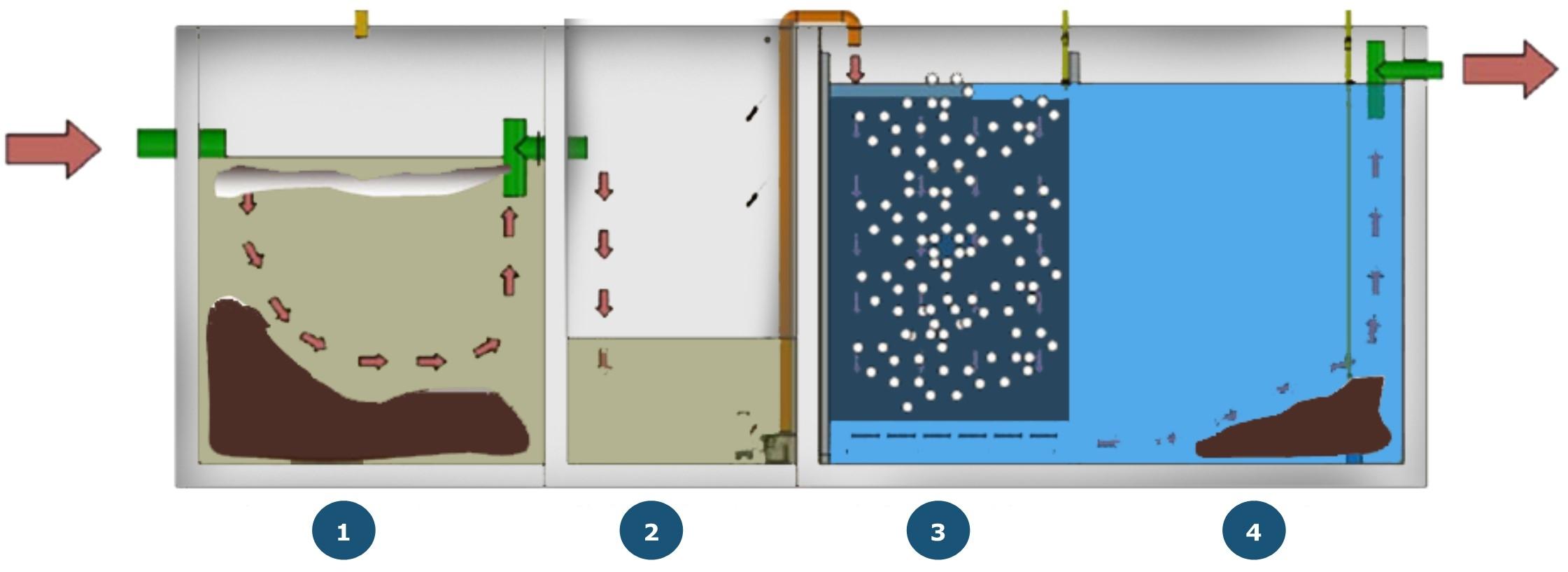

The BioKube Classic Solution

#Name of stepDescription of step
1Septic TankThe raw wastewater gravitates to the septic tank in which the settable suspended solids are settled pre-pairing the waste water for further treatment
2Buffer TankThe external pump well evens out fluctuating volumes of wastewater from the source ensuring constant batches of wastewater to the treating microorganisms.
3BiozoneIn the biozone microorganisms perform degradation of the organic load in the incoming wastewater to the required levels. The chamber consists of submerged bubble diffuser aerated filters
4ClarifierIn the clarifier, biosludge – the by-product from the biological treatment process – is settled and recirculated to the (1) septic tank by means of air lift pumps. This ensures less suspended solids in the outlet and continuous bio-sludge removal.
